| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | BAXIT |
| 모델 번호: | BXT-BT-150/BXT-BT-300/BXT-BT-1L/BXT-BT-2L/BXT-BT-5L/BXT-BT-10L/ |
| 최소 주문 수량: | 1 |
| 가격: | US$4340-20800/unit |
| 포장 세부 사항: | 카톤 박스 / 나무상자 |
| 배달 시간: | 0 일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력: | 10000 PC |
| 모델: | BXT-BT-150 | 최대 교반 용량 (처리 용량이 다른 사용자 정의 가능한 비품): | 5ML-150ML*싱글 컵 (300ml 컨테이너 포함) |
|---|---|---|---|
| 작업방식: | 진공, 혁명, 회전, 포워드 및 리버스 회전, 비접촉 혼합 모드 | 회전 속도: | 200-2000rpm (조정 가능) |
| 회전 속도: | 200–2000 RPM (궤도 속도와 동기화) | 궤도-방지 속도 비율: | 1 : 1 (선택 사항이 아님) |
| 실행 시간: | 0-30 분 (조정 가능) | 작업 공동: | 단일 챔버 교반 |
| 기계 크기: | 520*590*450 (mm) | 무게: | 약 85 킬로그램 |
| 진공도: | ﹣98KPA를 조정/ 내장 오일 프리 진공 장치를 내장 할 수 없습니다 | 적용 가능 환경: | 폴리머 재료 / 리튬 배터리 재료 / 수지 |
| 힘: | 대기 : 50W, 운영 전력 소비 : 1.2kw | 생산 효율성: | 마이크로 미터 크기의 기포가 완전히 제거 될 때까지 1-5 분 동안 혼합물을 저어줍니다. |
| 전원 공급: | AC220V ± 10%、 50/60Hz | 장비 적용 가능성: | 다양한 흐르는 액체는 분말, 고체 재료와 혼합 된 다음 교반, 불명예 및 분산됩니다. |
| 균형 장치: | 무게 균형추, 기계식 바닥 스프링 보호 장치, 최대 불균형 20g에서도 안정적으로 작동 가능 | 안전기능: | 커버 / 비상 정지를 시작하면 고장 / 종료로 인한 자동 종료 |
| 프로그램 저장 매체 용량: | 각각 5 단계로 독립적으로 구성된 20 개의 프로그램 세트. 각 단계는 시간, 속도, 방향 및 진공 용량을 위해 조정할 수 있습니다. | ||
| 강조하다: | Centrifugal Mixer for Gel Degassing,Vacuum degassing centrifugal mixer,Gel degassing centrifugal mixer |
||

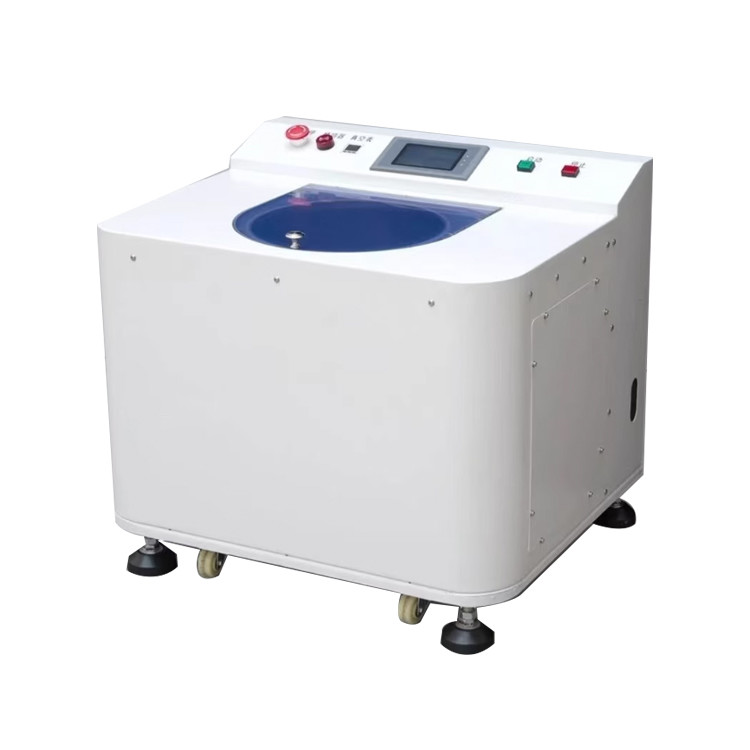

Vacuum Degassing Mixer
The container support cabinet is tilted 45 degrees with respect to the rotating axis.
It fixes the container containing the material on this support.
"Rotation (around the axis): clockwise circular movement (for defoaming)
"Self-rotation": counterclockwise rotation, rotating on the circular movement track with the center of the container as the axis (for mixing). The interaction of self-rotation and rotation causes vortices and up-down convection, expelling air bubbles from the material. During mixing and dispersion, no bubbles are mixed in.
| Model | BXT-BT-150 | BXT-BT-300 | BXT-BT-1L |
| Maximum stirring capacity (Customizable fixtures with different processing capacities) |
5ml-150ml*Single cup (With 300ml container) |
5ml-350ml*Double cups (With 600ml container) |
10ml-600ml*Double cups (With 1000ml container) |
| 1g-150gSingle cup (Dependent on the material density) |
1g-350g*Double cups (Dependent on the material density) |
10g-600g*Double cups (Dependent on the material density) |
|
| Compatible with syringes within the range of 3 to 30CC | Compatible with syringes within the range of 3 to 55CC | Compatible with syringes within the range of 5 to 200CC | |
| Work method | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode |
| Revolution speed | 200 - 2000RPM (adjustable) |
1- 3000RPM (adjustable) |
10 - 2500 RPM (adjustable) |
| Rotation speed | 200–2000 RPM (synchronized with orbital speed) | 1–3000 RPM (synchronized with orbital speed) |
10–2500 RPM (synchronized with orbital speed) |
| Orbital-rotational speed ratio | 1:1 (Not Optional) | 1:1 or separately adjustable by dual motors (optional) | |
| Running time | 0-30min(adjustable) | ||
| Working cavity | Single-chamber agitation | Dual-chamber agitation | |
| Machine size | 520*590*450(mm) | 580*450*620(mm) | 660*520*700(mm) |
| Weight | About 85kg | About 110kg | About 130kg |
| Vacuum degree | ﹣98kpa Cannot be adjusted/ Built-in oil-free vacuum device |
﹣101kpa Adjustable/ Built-in oil-free vacuum device |
|
| Applicable environment | Polymer materials / Lithium battery materials / Resin | Resin/Silicone/AB glue/Transparent glue/Powder + Glue | Silver paste / ink / slurry / hot molding body / medical aesthetics / encapsulation adhesive |
| Power | Standby: 50W, Operating power consumption: 1.2kW | Standby: 50W, Operating power consumption: 1.5kW | Standby: 50W, Operating power consumption: 2kW |
| Production efficiency | Stir the mixture for 1-5 minutes until the micrometer-sized bubbles are completely eliminated | Stir the mixture for 1-3 minutes until the micrometer-sized bubbles are completely eliminated | |
| Power supply | AC220V±10%,50/60HZ | ||
| Equipment applicability | Various flowing liquids are mixed with powders, solid materials, and are then agitated, defoamed, and dispersed. | ||
| Balance device | Weight counterweight, mechanical bottom spring protection device, can work stably under a maximum unbalance of 20g | Weight counterweight and mechanical bottom spring protection device, capable of stable operation under a maximum unbalance of 40g | |
| Safety function | Automatic shutdown due to failure / Shutdown upon opening the cover / Emergency stop | Door lock alarm, vibration alarm, vacuum alarm, overload alarm, work completion prompt, emergency stop switch | |
| Program storage capacity | 20 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity | 50 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity. | |
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
