| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | BAXIT |
| 모델 번호: | BXT-BT-150/BXT-BT-300/BXT-BT-1L/BXT-BT-2L/BXT-BT-5L/BXT-BT-10L/ |
| 최소 주문 수량: | 1 |
| 가격: | US$4340-20800/unit |
| 포장 세부 사항: | 카톤 박스 / 나무상자 |
| 배달 시간: | 0 일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력: | 10000 PC |
| 모델: | BXT-BT-1L | 최대 교반 용량 (처리 용량이 다른 사용자 정의 가능한 비품): | 10m1-600ml*두배 컵 (1000ml 컨테이너) |
|---|---|---|---|
| 작업방식: | 진공, 혁명, 회전, 포워드 및 리버스 회전, 비접촉 혼합 모드 | 회전 속도: | 10-2500 rpm (조절 가능) |
| 회전 속도: | 10–2500 rpm (궤도 속도와 동기화) | 궤도-방지 속도 비율: | 1 : 1 또는 듀얼 모터에 의해 별도로 조정 가능 (선택 사항) |
| 실행 시간: | 0-30 분 (조정 가능) | 작업 공동: | 이중 챔버 교반 |
| 기계 크기: | 660*520*700(mm) | 무게: | 약 130KG |
| 진공도: | ﹣101KPA 조정 가능/ 내장 고전기 오일 펌프 진공 장치 | 적용 가능 환경: | 은 페이스트 / 잉크 / 슬러리 / 뜨거운 성형 바디 / 의료 미학 / 캡슐화 접착제 |
| 힘: | 대기 : 50W, 운영 전력 소비 : 2kw | 생산 효율성: | 마이크로 미터 크기의 기포가 완전히 제거 될 때까지 1-3 분 동안 혼합물을 저어줍니다. |
| 전원 공급: | AC220V ± 10%、 50/60Hz | 장비 적용 가능성: | 다양한 흐르는 액체는 분말, 고체 재료와 혼합 된 다음 교반, 불명예 및 분산됩니다. |
| 균형 장치: | 최대 불균형 40g에서 안정적인 작동이 가능한 중량 카운터 웨이트 및 기계적 바닥 스프링 보호 장치 | 안전기능: | 도어 잠금 알람, 진동 경보, 진공 경보, 오버로드 경보, 작업 완료 프롬프트, 비상 정지 스위치 |
| 프로그램 저장 매체 용량: | 50 개의 프로그램 세트는 5 단계로 독립적으로 구성되었습니다. 각 단계는 시간, 속도, 방향 및 진공 용량을 위해 조정할 수 있습니다. | ||
| 강조하다: | Phosphorus powder vacuum planetary centrifugal mixer,Glue vacuum planetary centrifugal mixer,Laboratory vacuum planetary centrifugal mixer |
||

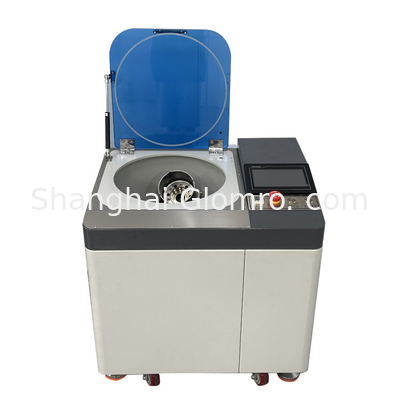

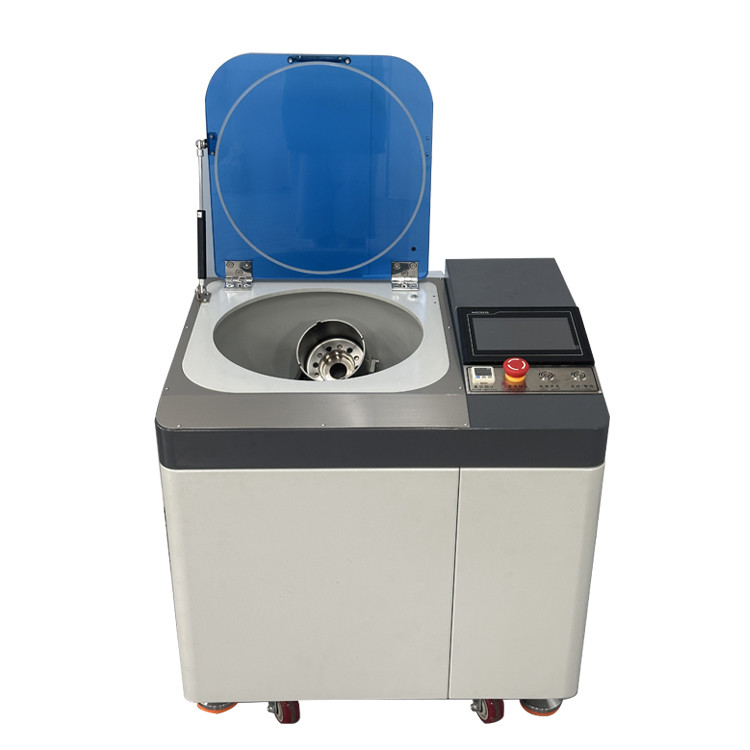

Vacuum Degassing Mixer
The container support cabinet is tilted 45 degrees with respect to the rotating axis.
It fixes the container containing the material on this support.
"Rotation (around the axis): clockwise circular movement (for defoaming)
"Self-rotation": counterclockwise rotation, rotating on the circular movement track with the center of the container as the axis (for mixing). The interaction of self-rotation and rotation causes vortices and up-down convection, expelling air bubbles from the material. During mixing and dispersion, no bubbles are mixed in.
| Model | BXT-BT-150 | BXT-BT-300 | BXT-BT-1L |
| Maximum stirring capacity (Customizable fixtures with different processing capacities) |
5ml-150ml*Single cup (With 300ml container) |
5ml-350ml*Double cups (With 600ml container) |
10ml-600ml*Double cups (With 1000ml container) |
| 1g-150gSingle cup (Dependent on the material density) |
1g-350g*Double cups (Dependent on the material density) |
10g-600g*Double cups (Dependent on the material density) |
|
| Compatible with syringes within the range of 3 to 30CC | Compatible with syringes within the range of 3 to 55CC | Compatible with syringes within the range of 5 to 200CC | |
| Work method | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode | Vacuum, revolution, rotation, forward and reverse rotation, non-contact mixing mode |
| Revolution speed | 200 - 2000RPM (adjustable) |
1- 3000RPM (adjustable) |
10 - 2500 RPM (adjustable) |
| Rotation speed | 200–2000 RPM (synchronized with orbital speed) | 1–3000 RPM (synchronized with orbital speed) |
10–2500 RPM (synchronized with orbital speed) |
| Orbital-rotational speed ratio | 1:1 (Not Optional) | 1:1 or separately adjustable by dual motors (optional) | |
| Running time | 0-30min(adjustable) | ||
| Working cavity | Single-chamber agitation | Dual-chamber agitation | |
| Machine size | 520*590*450(mm) | 580*450*620(mm) | 660*520*700(mm) |
| Weight | About 85kg | About 110kg | About 130kg |
| Vacuum degree | ﹣98kpa Cannot be adjusted/ Built-in oil-free vacuum device |
﹣101kpa Adjustable/ Built-in oil-free vacuum device |
|
| Applicable environment | Polymer materials / Lithium battery materials / Resin | Resin/Silicone/AB glue/Transparent glue/Powder + Glue | Silver paste / ink / slurry / hot molding body / medical aesthetics / encapsulation adhesive |
| Power | Standby: 50W, Operating power consumption: 1.2kW | Standby: 50W, Operating power consumption: 1.5kW | Standby: 50W, Operating power consumption: 2kW |
| Production efficiency | Stir the mixture for 1-5 minutes until the micrometer-sized bubbles are completely eliminated | Stir the mixture for 1-3 minutes until the micrometer-sized bubbles are completely eliminated | |
| Power supply | AC220V±10%,50/60HZ | ||
| Equipment applicability | Various flowing liquids are mixed with powders, solid materials, and are then agitated, defoamed, and dispersed. | ||
| Balance device | Weight counterweight, mechanical bottom spring protection device, can work stably under a maximum unbalance of 20g | Weight counterweight and mechanical bottom spring protection device, capable of stable operation under a maximum unbalance of 40g | |
| Safety function | Automatic shutdown due to failure / Shutdown upon opening the cover / Emergency stop | Door lock alarm, vibration alarm, vacuum alarm, overload alarm, work completion prompt, emergency stop switch | |
| Program storage capacity | 20 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity | 50 sets of programs, each set independently configured in 5 stages. Each stage can be adjusted for time, speed, direction, and vacuum capacity. | |
