| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | BAXIT |
| 모델 번호: | BXT-HP10/BXT-HP20/BXT-HP50 |
| 최소 주문 수량: | 1 |
| 가격: | US $8283.0 - 12496.0 / Unit |
| 포장 세부 사항: | 상자 상자/나무 상자 |
| 배달 시간: | 5-8 일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 10000pcs |
| 최대 흐름: | 20-23L/h | 산출: | 18ML-23L/h |
|---|---|---|---|
| 강조하다: | high-pressure nano-homogenizer BXT-HP10,industrial nano-homogenizer with warranty,experimental homogenizer for industrial MRO |
||
High-pressure nano homogenizer
The high-pressure nano-homogenizer, as a device integrating "high-pressure transportation - multi-force synergy - precise homogenization", has its core value in achieving nano-scale refinement and dispersion of materials through physical actions, providing technical support for product innovation and process upgrading in various industries. Whether it is precise drug delivery in the pharmaceutical industry, quality improvement in the food industry, or scientific research exploration in biotechnology, it plays an irreplaceable role. With the continuous development of nanotechnology, the high-pressure nano-homogenizer will be upgraded towards higher pressure, more intelligence, and greater environmental friendliness, further expanding its application boundaries in high-end manufacturing and scientific research fields.
Effect
Mechanical force and the accompanying slight thermal effect (generated by high-pressure friction, which can usually be controlled by the cooling system) cause changes in the physical structure (such as particle size distribution) and chemical properties (such as stability) of the material. Eventually, uniform-sized and well-dispersed nanometer-sized materials are formed and discharged from the outlet.
Model and Specifications
| Model | BXT-HP10 | BXT-HP20 | BXT-HP50 |
| Maximum flow | 10-15L/H | 20-23L/H | 10-40L/H |
| Output | 15ML-10L/H | 18ML-23L/H | 50ML-40L/H |
| Minimum processing capacity | 15ML | 20ML | 50ML |
| Design uniform pressure | Maximum 2000 bar | Maximum 1650bar | |
| Maximum working pressure | 1650bar | 1500bar | 15000bar |
| Main motor | 1.5KW,Level 8 | 2.2KW,Level 8 | 5.5KW,Level 6 |
| Voltage/Frequency | 220V/50Hz/2-Phase | 380V/50Hz/3-Phase | 380V/50Hz/3-Phase |
| Process products | Nano emulsions, food emulsification, suspensions, liposomes, fat emulsions, etc. | ||
| Product process viscosity | <2000cPs | ||
| Maximum feed particle size | <500μm | ||
| Homogenization stage number | First-level homogenization(homogenization, emulsification, dispersion) | ||
| Pressure gauge | High-precision sanitary digital pressure sensor | ||
| Level / Plunger | Hygienic Grade / 1 Piece of Zirconia Ceramic | ||
| Internal cooling | Fan | ||
| Feed and discharge connection | Tri-Clamp Quick-Connect Chuck | ||
| Maximum cleaning temperature | <90°C | ||
| Maximum sterilization temperature | <145°C | ||
| Cleaning / Disinfection Time | 30 minutes | ||
| Pressurization method | Manual pressurization | ||
| Split pump head | SAF2205 | ||
| Guide plate | SUS316L | ||
| Homogenizing valve | Diamond | ||
| Overall dimensions | 550x440x440mm | 630x520x440mm | 840x632x920mm |
| Net weight | 150kg | 150kg | 240kg |
Device features
1.High-pressure advantage: The higher the pressure, the smaller the particle size of the material and the more uniform the distribution. However, it should be noted that high pressure will also lead to an increase in heat generation, and a cooling system (such as a water chiller) needs to be provided to control the temperature.
2.Easy cleaning and compliance: Some devices adopt a split design for the pump body, which is easy to disassemble. They support online cleaning (CIP) and online sterilization (SIP), and comply with GMP standards in the pharmaceutical and food industries.
3.Intelligent control: The intelligent touch screen enables real-time monitoring of parameters such as pressure, flow, and temperature. It supports data storage, copying (such as exporting via USB drive), and is convenient for process traceability.
4.Durability of material: The homogeneous cavities are mostly made of materials such as diamond, zirconia ceramics, and duplex steel, which are resistant to high pressure and corrosion, thereby extending the service life of the equipment.
Product structure

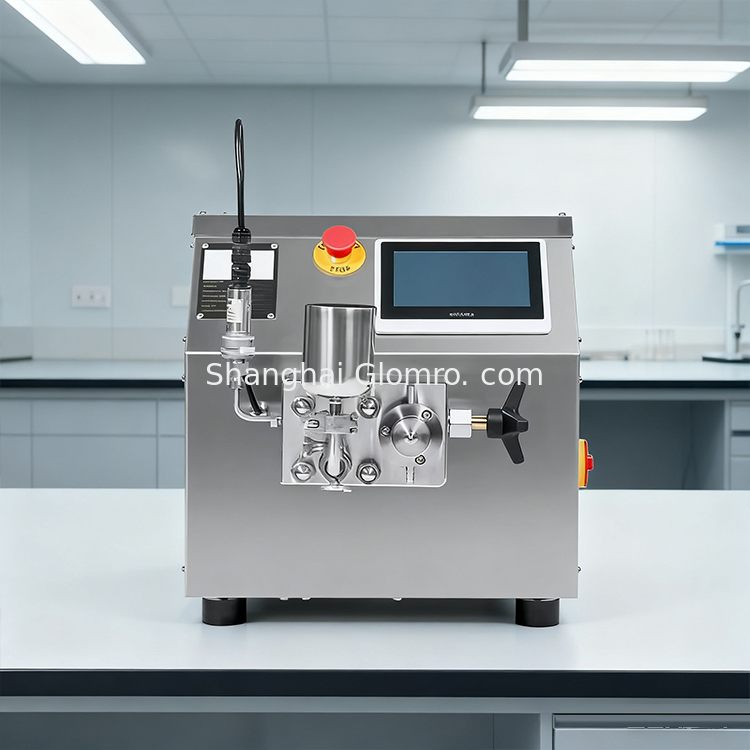

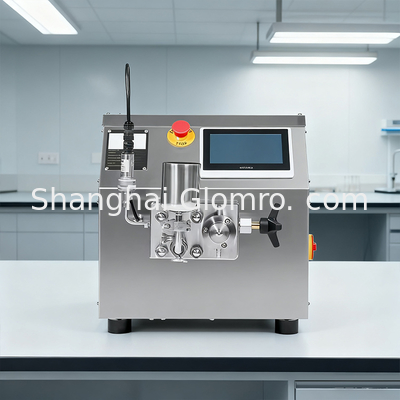

Physical picture
