| 브랜드 이름: | BAXIT |
|---|---|
| 인증: | Provided |
| 모델 번호: | BXT-YT/GZ-03 |
| 최소 주문 수량: | 1 |
| 가격: | US $81.23 - 684.0 / Set |
| 포장 세부 사항: | 상자 상자/나무 상자 |
| 배달 시간: | 5-8 일 |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 100000psc |
| 제품 이름: | 폭발 증명 비 스파크 플러그 및 소켓 폭발 증명 커넥터 | 사용자 정의: | 예 |
|---|---|---|---|
| 강조하다: | explosion proof aviation plug connector,non sparking pin plug socket,fixed 220V industrial plug connector |
||
product introduction
Explosion-proof non-sparking sockets and plugs are a special type of industrial electrical connection device specifically designed for environments with flammable and explosive hazards. The core concept of this design is to completely eliminate mechanical sparks or electrical sparks during connection and disconnection through a series of precise structural, material, and process innovations. This fundamentally eliminates ignition sources and provides a crucial guarantee for safe production in fields such as petroleum, chemical engineering, military industry, and mining.
Product parameters
| Model | BAXIT-YT/GZ/YZ/XZ | Product Name | Non sparking explosion-proof connectors |
| Working voltage | 220V/380V | Installation method | Portable / Fixed type |
| Product material | Aluminum alloy casing | Pin insertion | Silver plating |
| Environmental temperature | -20~60℃ | Temperature rise | ≤65K |
| Insulation resistance | ≥1000mΩ | Contact resistance | ≤0.5mΩ |
| Corrosion resistance level | WF1 | Protection level | IP66 |
| Working current | 15/16/25/30/32/60/63/100/200/300A | ||
| electrode | 1P+N+PE(3PIN),3P+PE(4PIN),3P+N+PE(5PIN) | ||
| Explosion-proof mark | EXnAIICT4Gc | ||
Size Installation Diagram
| Size/ Specification |
L1≈ | L2≈ | L3≈ | L4≈ | D1 | D2 | D3 | ød±0.07 | ød1 | ød2 | P | Q±0.2 |
| 15/16A | 130 | 55 | 132 | 8 | ø49 | ø33 | ø35 | 13 | 3 | 4.5 | 42.5 | 34 |
| 25A | 130 | 55 | 132 | 8 | ø49 | ø33 | ø35 | 13 | 3 | 4.5 | 42.5 | 34 |
| 32A | 144 | 64 | 142 | 18 | ø61 | ø42 | ø51 | 15.6 | 3.5 | 4.5 | 51 | 42 |
| 60A | 153 | 72 | 145 | 22 | ø64 | ø48 | ø51 | 18 | 5.5 | 4.5 | 56 | 47.5 |
| 100A | 166 | 85 | 173 | 30 | ø79 | ø61 | ø65 | 24 | 7 | 5.5 | 70 | 60 |
| 150A | 177 | 92 | 188 | 32 | ø84 | ø65 | ø70 | 27 | 8.5 | 5.5 | 75 | 64 |
| 200A | 195 | 100 | 199 | 32 | ø90 | ø71 | ø73.5 | 30 | 10 | 5.5 | 80 | 70 |
| 300A | 200 | 100 | 199 | 42 | ø90 | ø71 | ø73.5 | 34.5 | 12 | 5.5 | 80 | 70 |

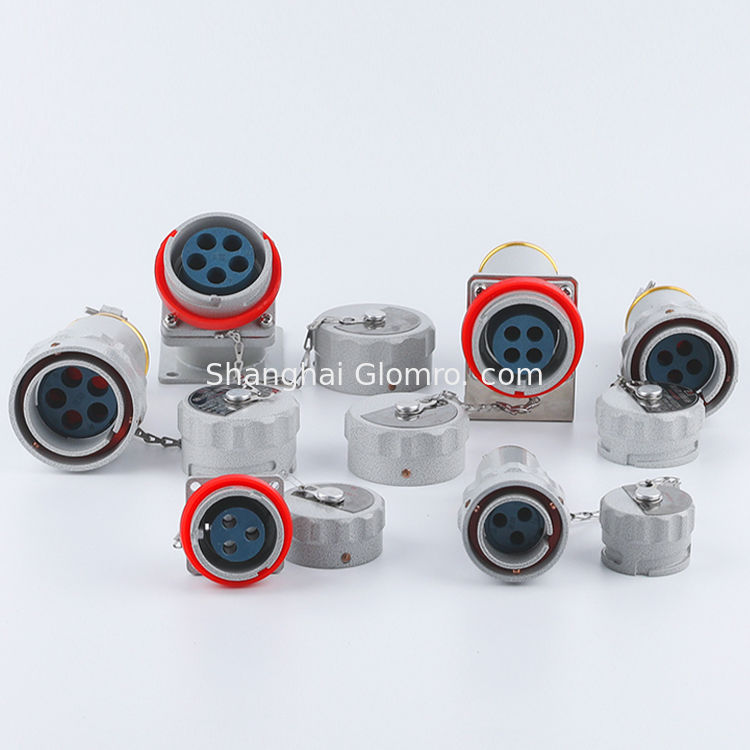

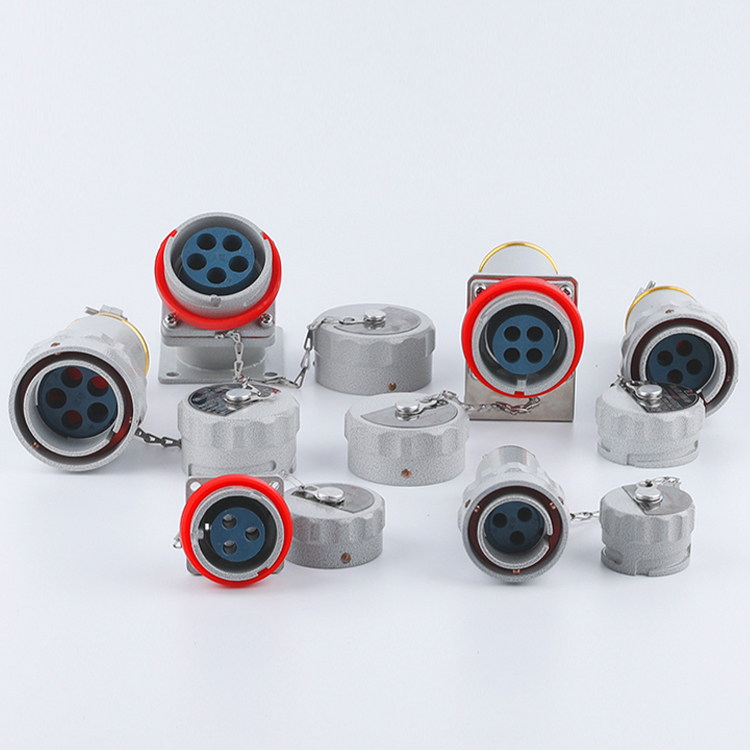

Product details
Aplication
