| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | BAXIT |
| 모델 번호: | BXT-DSF600/BXT-DSF900 |
| 최소 주문 수량: | 1 |
| 가격: | US$17,805-18,780/unit |
| 포장 세부 사항: | 카톤 박스 / 나무상자 |
| 배달 시간: | 0 일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력: | 10000 PC |
| 모델: | BXT-DSF600 | 감지 매트릭스: | 철 기반, 구리 기반, 알루미늄 기반, 나일론 기반, 코발트 기반, 마그네슘 기반, 티타늄 기반, 아연 기반, 납 기반 등 |
|---|---|---|---|
| 시험 시간: | 샘플 유형에 따라 일반적으로 약 25 초입니다. | 광 시스템: | Paschen-Runge Rowland Circle Full-Spectrum 광학 시스템 |
| 파장 범위: | 160-800Nm | 초점 거리: | 300mm |
| 검출기: | 고해상도 다중 CMOS 이미지 센서 | 전극: | 텅스텐 제트 전극 |
| 강조하다: | Direct Reading Metal Analyzer,Fully Direct Reading Metal Analysis Spectrometer |
||

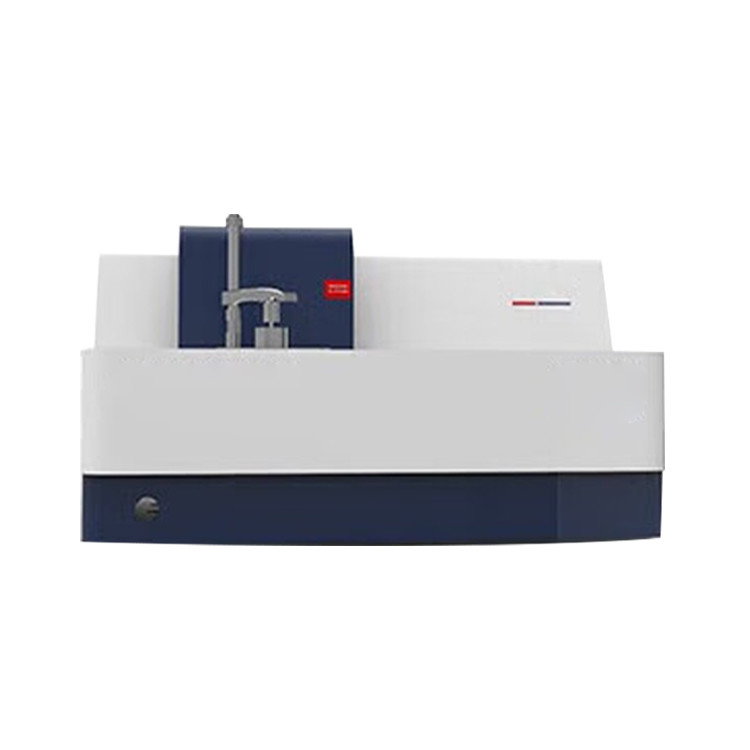

Full-spectrum direct reading spectrometer
The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.
Technical Specifications
| Model | BXT-DSF600 | BXT-DSF900 |
| Detection Matrix | Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. | Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. |
| Testing time | Depending on the type of sample, it is generally around 25 seconds | Depending on the type of sample, it is generally around 25 seconds |
| Optical system | Paschen-Runge Rowland Circle Full-Spectrum Optical System | Paschen-Runge Rowland Circle Full-Spectrum Optical System |
| Wavelength range | 160-800nm | 130-800nm |
| Focal length | 300mm | 400mm |
| Detector | High-resolution multi-CMOS image sensor | International-level detector module, high-performance linear CCD |
| Electrode | Tungsten Jet Electrode | Tungsten Jet Electrode |
| Analysis Gap | Sample table analysis gap:3. 5mm | Sample table analysis gap:3.5mm |
| Working temperature | (10-35)℃ | (10-35)℃ |
| Storage temperature | (0-45)℃ | (0-45)℃ |
| Work humidity | 20%-80% | 20%-80% |
| Purity requirements for argon gas | 99.999% | 99.999% |
| Argon gas inlet pressure | 0.5MPa | 0.5MPa |
| In an argon flow | Excitation flow rate is approximately 3. 5L/min | Excitation flow rate is approximately 3.5L/min |
| Light source type | Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS) | Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS) |
| Discharge frequency | 100-1000 Hz | 100-1000 Hz |
| Discharge current | Max 380A | Max 380A |
| Excitation Stage Aperture | 13mm | 13mm |
| Vacuum system | Vacuum system | Vacuum system |
| Working power supply | 220V AC,50/60Hz,Protective grounded single-phase power supply | 220VAC,50/60Hz,Protective grounded single-phase power supply |
| Instrument size | 720X560X370mm | 860x660x360mm |
| Instrument weight | 65kg | 80kg |
Packing & Delivery
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
