| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | BAXIT |
| 모델 번호: | BXT-DSF600/BXT-DSF900 |
| 최소 주문 수량: | 1 |
| 가격: | US$17,805-18,780/unit |
| 포장 세부 사항: | 카톤 박스 / 나무상자 |
| 배달 시간: | 0 일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
| 공급 능력: | 10000 PC |
| Model: | BXT-DSF900 | Detection Matrix: | Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. |
|---|---|---|---|
| Testing time: | Depending on the type of sample, it is generally around 25 seconds | Optical system: | Paschen-Runge Rowland Circle Full-Spectrum Optical System |
| Wavelength range: | 130-800nm | Focal length: | 400mm |
| Detector: | International-level detector module, high-performance linear CCD | Electrode: | Tungsten Jet Electrode |
| 강조하다: | Iron-based metal analysis spectrometer,Direct reading metal analysis spectrometer,Full-spectrum metal analysis spectrometer |
||

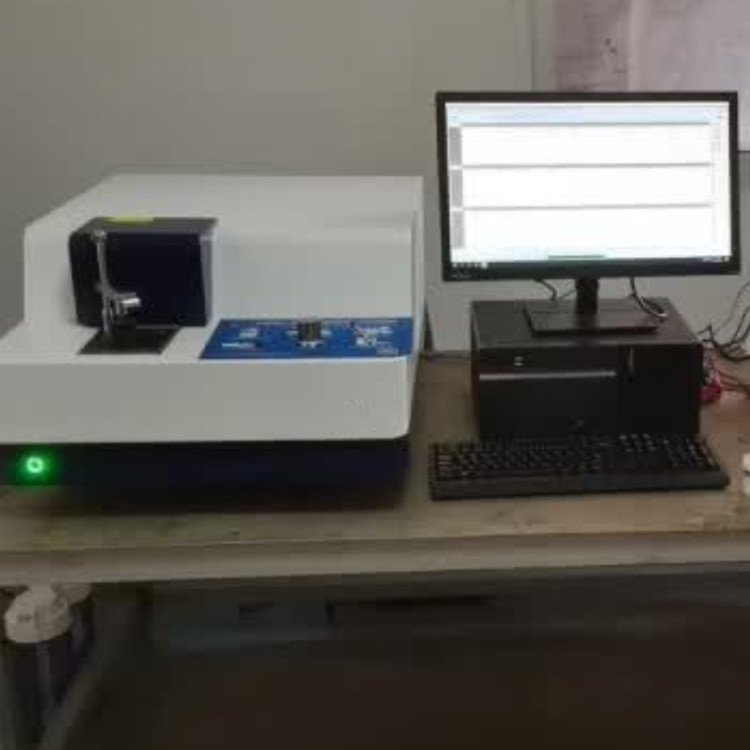

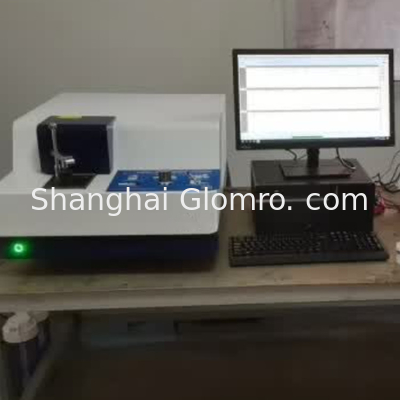

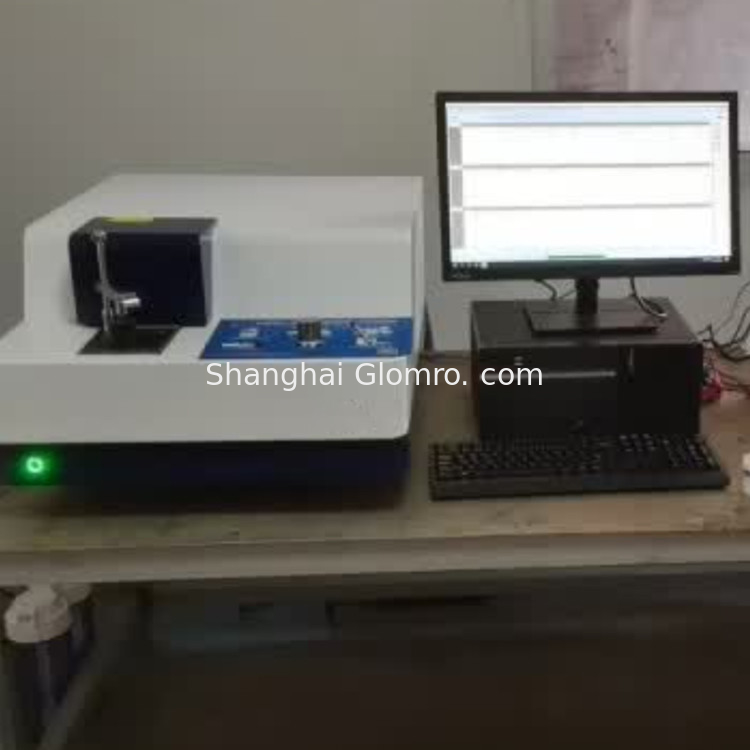

Full-spectrum direct reading spectrometer
The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.
Technical Specifications
| Model | BXT-DSF600 | BXT-DSF900 |
| Detection Matrix | Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. | Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. |
| Testing time | Depending on the type of sample, it is generally around 25 seconds | Depending on the type of sample, it is generally around 25 seconds |
| Optical system | Paschen-Runge Rowland Circle Full-Spectrum Optical System | Paschen-Runge Rowland Circle Full-Spectrum Optical System |
| Wavelength range | 160-800nm | 130-800nm |
| Focal length | 300mm | 400mm |
| Detector | High-resolution multi-CMOS image sensor | International-level detector module, high-performance linear CCD |
| Electrode | Tungsten Jet Electrode | Tungsten Jet Electrode |
| Analysis Gap | Sample table analysis gap:3. 5mm | Sample table analysis gap:3.5mm |
| Working temperature | (10-35)℃ | (10-35)℃ |
| Storage temperature | (0-45)℃ | (0-45)℃ |
| Work humidity | 20%-80% | 20%-80% |
| Purity requirements for argon gas | 99.999% | 99.999% |
| Argon gas inlet pressure | 0.5MPa | 0.5MPa |
| In an argon flow | Excitation flow rate is approximately 3. 5L/min | Excitation flow rate is approximately 3.5L/min |
| Light source type | Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS) | Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS) |
| Discharge frequency | 100-1000 Hz | 100-1000 Hz |
| Discharge current | Max 380A | Max 380A |
| Excitation Stage Aperture | 13mm | 13mm |
| Vacuum system | Vacuum system | Vacuum system |
| Working power supply | 220V AC,50/60Hz,Protective grounded single-phase power supply | 220VAC,50/60Hz,Protective grounded single-phase power supply |
| Instrument size | 720X560X370mm | 860x660x360mm |
| Instrument weight | 65kg | 80kg |
